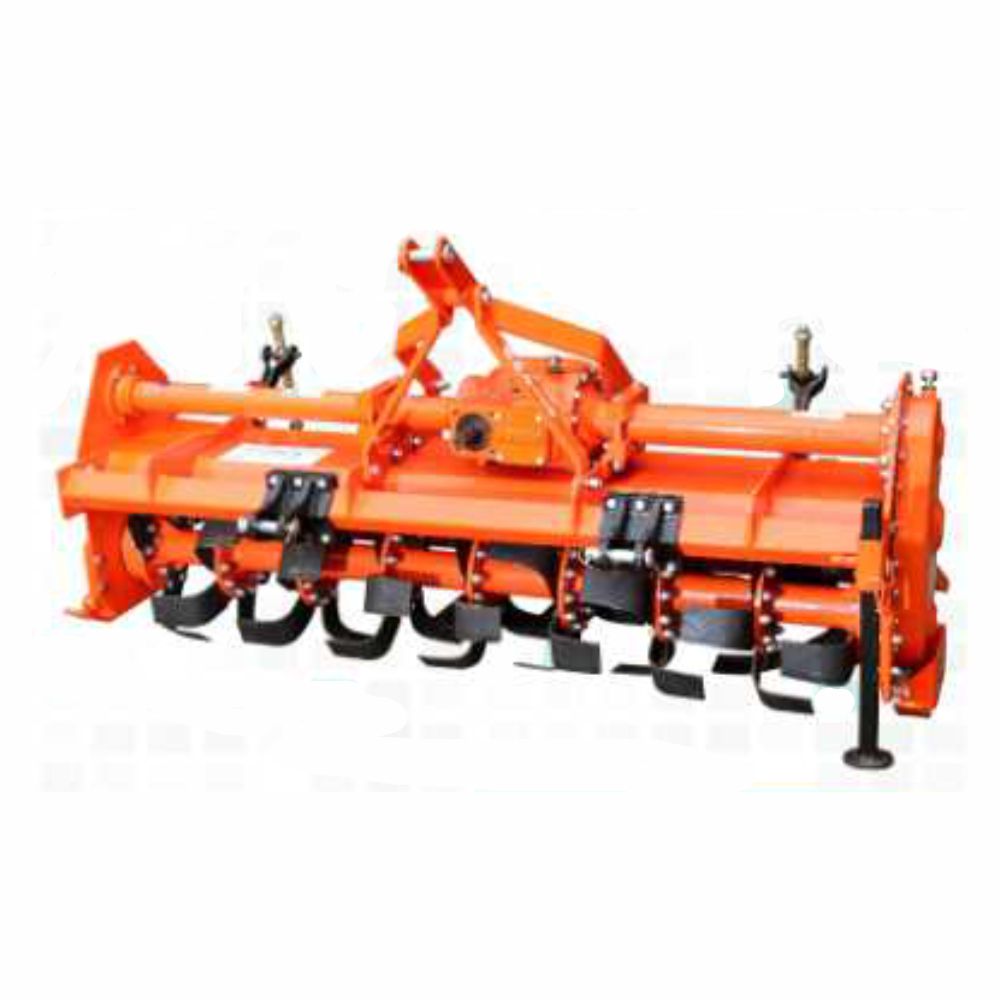

AMBICA JUMBO ROTARY TILLER (MODEL – ARJ 6)
₹100000
- Warranty as per company Policy.
- Delivery will be made after the full payment against order.
- Price are subject to change without any prior notice, for any variation in the prices at the time of supply shall also be applicable.
- Transportation Will be EXTRA
Description
- AMBICA JUMBO ROTARY TILLER (MODEL – ARJ 6)
- CHARACTERISTIC :- ARJ – 6
- OVERALL LENGTH (MM) :- 1990
- OVERALL WIDTH (MM) :- 900
- OVERALL HEIGHT (MM) :- 1130
- TILLING WIDTH (MM/INCH) :- 1725/69.91
- TRACTOR POWER (HP) :- 55-60
- 3-POINT HITCH TYPE :- CAT-1/CAT-2
- NO. OF BLADES PER ROTOR :-42
- STANDARD BLADE CONSTRUCTION :- L TYPE/ J TYPE
- TRANSMISSION TYPE :- GEAR
- MAX. WORKING DEPTH (MM/INCH):- 152/6
- ROTOR TUBE DIAMETER (MM/INCH) :- 89/3.50
- ROTOR SWING DIAMETER (MM/INCH) :- 470/18.50
- DRIVELINE SAFETY DEVICE :- SHEAR BOLT
- WEIGHT APPROX (KG) :- 480KG
| ROTOR RPM CHART | ||||
| INPUT RPM | GEARBOX | SPUR GEAR 1 | SPUR GEAR 2 | ROTOR SPEED |
| 540 | MULTI-SPEED | 15 | 20 | 160 |
| 16 | 19 | 175 | ||
| 17 | 18 | 200 | ||
| 18 | 17 | 224 | ||
| 19 | 16 | 251 | ||
| 20 | 15 | 282 | ||
| 1000 | MULTI-SPEED | 13 | 22 | 232 |
| STANDARD GEAR PAIR IS 17 X 18 | ||||
MORE INFO
- COUNTRY OF ORIGIN : INDIA
- MANUFACTURE’S BY JACKBRO GLOBAL PRIVATE LIMITED
Additional information
| Weight | 480 kg |
|---|---|
| Dimensions | 199 × 90 × 113 cm |
