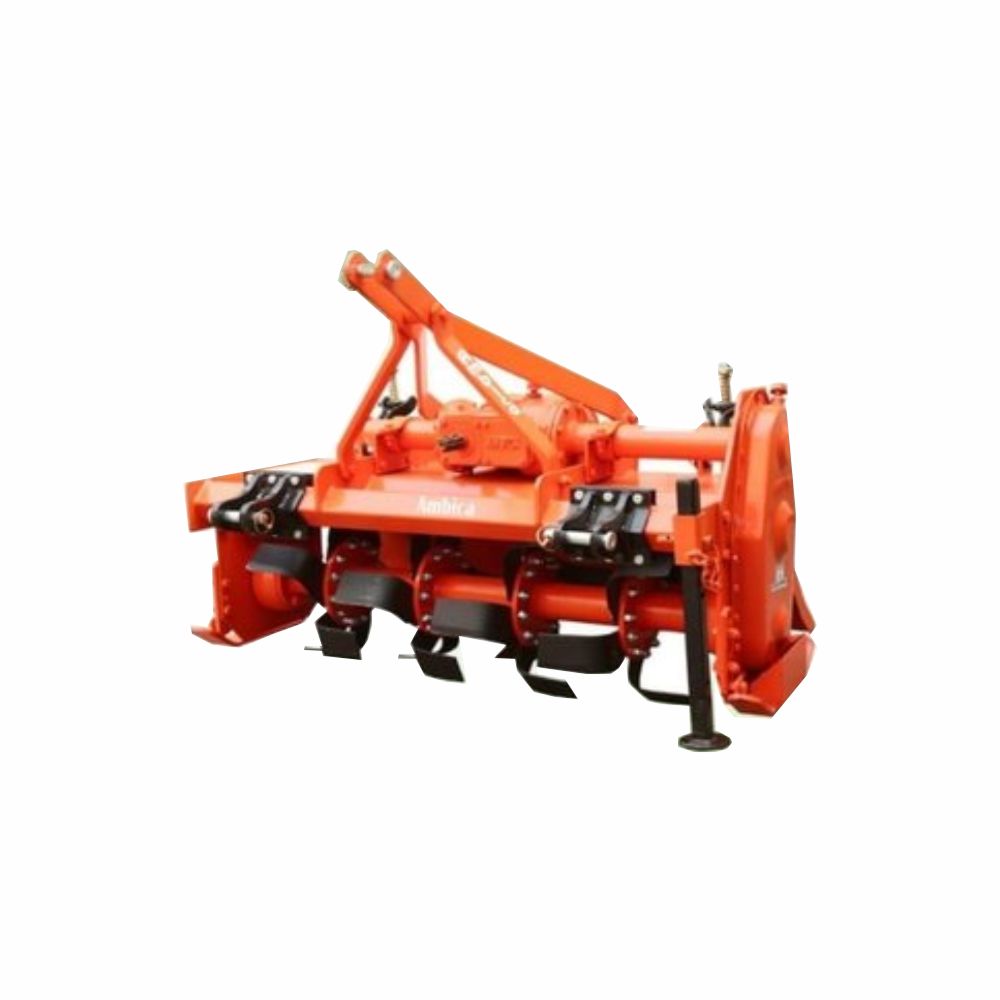

AMBICA MINI ROTARY TILLER (MODEL – ARM 2.5)

AMBICA MINI ROTARY TILLER (MODEL – ARM 2.5)

₹60000

  • Warranty as per company Policy.
  • Delivery will be made after the full payment against order.
  • Price are subject to change without any prior notice, for any variation in the prices at the time of supply shall also be applicable.
  • Transportation Will be EXTRA

Category: Brand: AMBICA ENGINEERING

Description

  • AMBICA MINI ROTARY TILLER (MODEL – ARM 2.5)
  • CHARACTERISTIC :- ARM – 2.5
  • OVERALL LENGTH (MM) :- 1080
  • OVERALL WIDTH (MM) :- 850
  • OVERALL HEIGHT (MM) :- 825
  • TILLING WIDTH (MM/INCH) :- 760/29.92
  • TRACTOR POWER (HP) :- 12-20
  • 3-POINT HITCH TYPE :- CAT-1
  • NO. OF BLADES PER ROTOR :- 16
  • STANDARD BLADE CONSTRUCTION :- L TYPE/ J TYPE
  • TRANSMISSION TYPE :- GEAR
  • MAX. WORKING DEPTH (MM/INCH):- 127/5
  • ROTOR TUBE DIAMETER (MM/INCH) :- 76/3
  • ROTOR SWING DIAMETER (MM/INCH) :- 425/16.73
  • DRIVELINE SAFETY DEVICE :- SHEAR BOLT
  • WEIGHT APPROX (KG) :- 225 KG

ROTOR RPM CHART
INPUT RPM GEARBOX SPUR GEAR 1 SPUR GEAR 2 ROTOR SPEED
540 SINGLE-SPEED 212
MULTI-SPEED 15 20 160
16 19 175
17 18 200
18 17 224
19 16 251
20 15 282
1000 MULTI-SPEED 13 22 232

STANDARD GEAR PAIR IS 17 X 18



MORE INFO

  • COUNTRY OF ORIGIN : INDIA
  • MANUFACTURE’S BY JACKBRO GLOBAL PRIVATE LIMITED

Additional information

Weight 225 kg
Dimensions 108 × 85 × 82.5 cm
